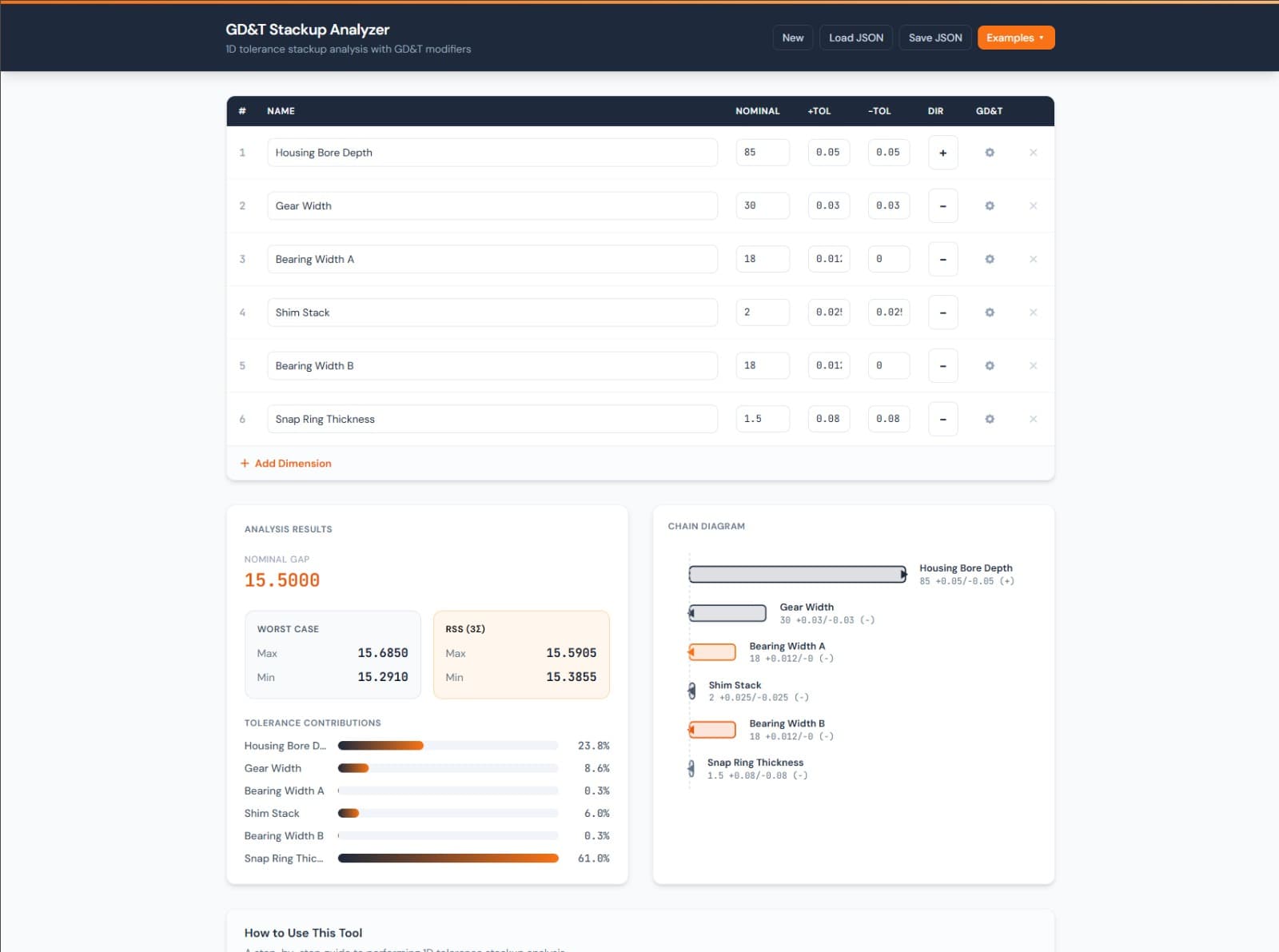

GD&T Stackup Analyzer
A browser-based tool for 1D tolerance stackups that checks whether an assembly gap holds, with real GD&T modifiers instead of plus/minus only.
- Worst-case and RSS (3σ) results with per-dimension contribution, updated live
- Bonus tolerance at MMC/LMC and datum shift handled as half-zone contributors
- Proportional SVG chain diagram; save and load analyses as JSON
- GD&T controls
- 7
- GD&T controls
- analysis methods
- 2
- analysis methods
- unit tests
- 15
- unit tests
